EVO brings a new level of usability and functionality to fuel tank gauges. A highly evolved user interface and blisteringly-fast new processor make everything from daily functions to advanced setup and programming simple for every user. Life happens in full colour; so should fuel tank gauging. The brilliant colour of the 7” touch screen brings a new level of user-friendliness, allowing you to navigate more easily, without memorising buttons and locations. Vibrant new icons and programmable product colours make this the most intuitive fuel tank gauge available.

• Inventory monitoring

• Static and continuous tank testing

• Tank autocalibration

• Inventory reconciliation

• Containment compliance monitoring when paired with sensors

• 24-hour statistical continuous automatic leak detection (SCALD)

• High/low product, water, and temperature alarm set points

• Email and SMS notifications

• Density, mass, and phase separation measurement


• Based on the popular O.L.E T4020 - T5020 fuel tank gauge but ATEX certified.

• Accuracy +/‑0.25% of tank capacity.

• Suitable with petrol, kerosene, diesel, bio diesel up to B100, AdBlue & antifreeze.

• Suits tanks 1m ‑ 10m high.

• Probe cable can be extended to 100m.

• Electronic display with back light (turns off after 1 hour).

• Weatherproof to IP55.

• Power supply can be 230V, 110V or 24VDC.

• Includes 4‑20mA outputs & Modbus RS485 for connect to a BMS system.​
• ​1 gauge required per tank. Includes tank mount probe junction box

FIS provide Specialist Fuel Tank Gauge installation and maintenance to suit numerous industry's and a variety of liquids.

​​EVO FFS Remote Monitoring

DTA 10 Battery Operated Tank Gauge

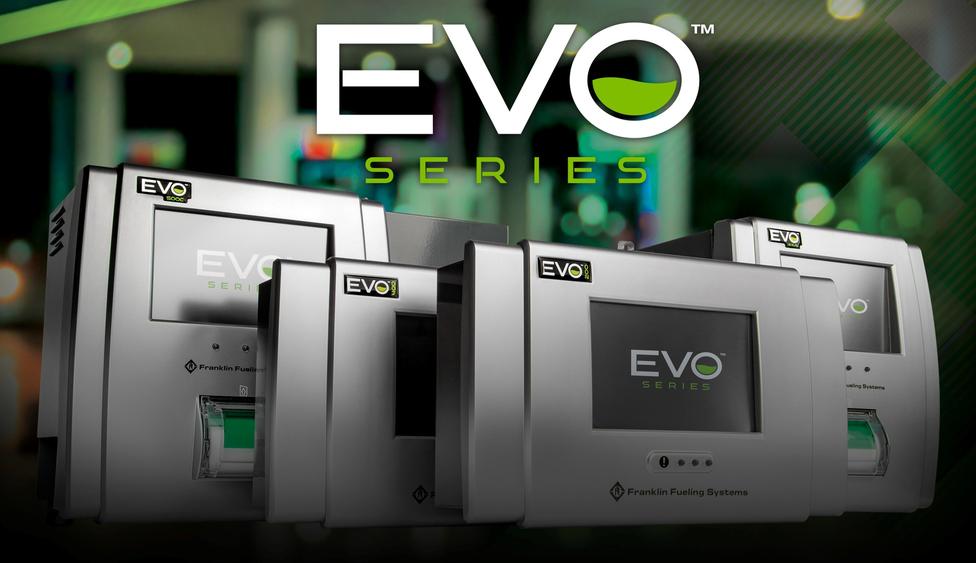

​​EVO Series Precision Fuel Tank Gauges

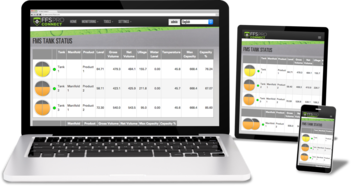

AnyWare™ is an internet based fuel management software package designed to provide you with unparalleled monitoring and control capabilities of you fuel tank gauge. Residing on a local server in your home office, System Sentinel AnyWare™ will allow your personnel to access site information through any web browser. System Sentinel AnyWare™ accumulates valuable fuel management data from all of your sites into one location. The new export feature allows you to extract this data in several different formats so it can be used by other applications. The data files can be automatically sent to an email address, FTP site, or saved to a local drive. From there they can be easily incorporated into other business tools like accounting or fuel dispatch applications. The powerful rules engine of the System Sentinel AnyWare™ software package allows you to manage by exception through automatic forwarding of alarm, leak test and inventory information to the appropriate people when immediate attention is required.

• Suitable with diesel, biodiesel, oils, water & AdBlue.
• Readout can be sited up to 20m away from tank. Hydrostatic gauge.
• Universal tank adaptor 1”, 1½” & 2” M BSPP. Integral wall mounting holes.
• Digital display shows litres, cm & %.
• Suits tanks from 0?4m diesel (water/AdBlue® 3.5m).
• Max tank volume 99,999L.
• Accuracy +/- 1cm (2m high tank +/-0.5%, 4m high tank +/-0.25%).
• Powered by a 9V battery (supplied) no need to remove front cover to replace.
• Battery bar shows remaining life.
• Suitable with linear, spherical & horizontal cylindrical tanks only.
• % alarm 0-100% display flashes red & gives visual warning, no audible alarm.
• Display comes on after you press any button, gives tank level reading, has a backlight, times out after 60 seconds.
• Compatible with existing UNITOP/UNITEL gauge probes so upgrading is simple.
• Dimensions 188mm H x 100mm W x 65mm D.
• Important: if sited outside a weatherproof cover is needed.


​​​  Fuel Tank Gauges and Alarms

With simplicity in mind, the OLE Z2000 - Z5020 system can be installed in less than 1 hour. Installation of the sensor into storage tank then wired to display and mounted on a wall or pipe. Plug in the lap top for configuration and test the alarms and scroll screen.

There are 4 Software settable Level outputs M,1,2 & 3. High Alarm is connected to Master “M” These are FET’s providing supply voltage output when switched, so 12 or 24 vdc outputs. Optional Plug on Relays make these Volt Free connections. Additional flashing lights or control functions are optional, as are Bund and Water bottom alarms on the T4020-1A and T5020-1A range.

Single or Multiple Tank gauging for any liquid or solid. Gasoil, Diesel, AdBlue, Lube Oil, Water, Ink, Molasses. Any tank shape can be programmed in this system. Safe area or EexiaIIc, Atex Zone 0/1 can be accommodated. IP 65 weatherproof, zone 2 / safe area . For Eexia applications barriers and IS sensors are provided. Display enclosure are RoHS & CE compliant.

OLE ​​Z2000 & Z5020 ATEX Storage Tank Gauge

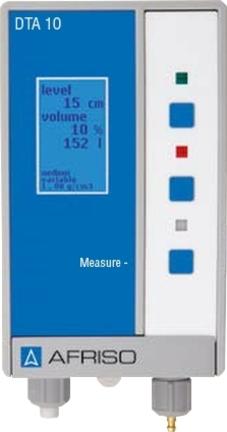

The DTA 10 electro-pneumatic tank contents indicator consists of a battery-operated control unit with digital display and a measuring capilliary tube.
Measurements are requested by means of pressing the control key (Push-to-Read function) and If the level falls below a minimum level that is freely adjustable as a percentage, the back light of the display flashes red to indicate an alarm during the measurement. Standard tank shapes (linear, spherical, cylindrical and horizontal) are stored. Measuring line connection for hose with 4 mm inside diameter and universal application in storage tanks of up to a height of 4 m with the Density adjustable from 0.5 to 1.5 g/cm3, i.e. suitable for many liquids.
