FIS are fully trained and certified installers for OmegaFlex DoubleTrac pipework systems with vast amounts of experience on a number of large fuel system projects.
As with the entire line of semi-rigid piping from OmegaFlex, DoubleTrac is flexible, direct burial piping that is easier to install and is less labour intensive than rigid piping installations. DoubleTrac requires no special tools to assemble, can be bent by hand and the patented field attachable fittings provide a reliable metal to metal seal though proven technology. It’s supplied in continuous lengths from a spool that eliminates the need for splice joints, no electro-fusion joint welding, no adhesives, no curing problems, and no leaks.
DoubleTrac’s innovative double wall design includes a UV stabilised Nylon 12 outer layer, providing excellent resistance to weathering, and chemical exposure. Elbows and tees available to facilitate installations in restricted spaces, double containment flow through maintained throughout all fittings.

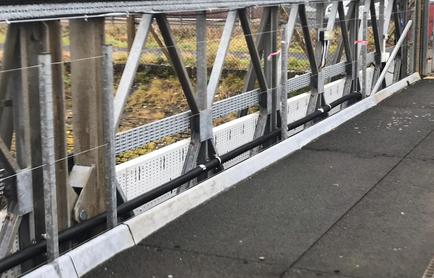

Routes easily along or underneath docks. The Nylon 12 outer jacket is UV stabilized and salt water resistant; no chase pipe required. Can be supplied in extra long continuous lengths; eliminating transition sumps on the dock. Additionally, a double containment flexible floating dock connector is available.
Corrugated Stainless Steel Primary Pipe
This zero-permeation, ASTM A 240 316 series stainless steel pipe is highly resistant to corrosion, providing longer life and exceptional crush resistance.
EFEP Secondary Barrier Jacket
This layer is bonded to the Nylon 12 protective layer to offer secondary containment with exceptional permeation resistance for product compatibility. Interstitial space allows continuous monitoring for leak detection, with a 50 psig rating for pressurised systems.
UV Stabilised Nylon 12 Outer Jacket
This direct-burial layer offers exceptional resistance to hydrocarbons, chemical and water exposure, and carries a 50 psig rating. UV stabilised for above ground and marine use.
New Quicker, Easier Assembly Fitting
Provides a metal to metal sealing surface that’s unsurpassed in reliability and user friendliness, and is field-attachable using standard tools. Availible in Alloy 360 Brass or Stainless Steel.
